Bulldozers Parts North Dakota - Dozers are similar to a tractor that is outfitted with a dozer blade. They are most often crawler tractors - that is, they operate on a continuous track, rather than wheels - although they can be wheeled tractors. The dozer blade attaches to the front of the bulldozer to push materials easily and efficiently. The dozer blade is used to push large volumes of material, such gravel or dirt, during construction and alteration projects. Big, metal teeth known as “the ripper” are located on the back of the bulldozer, used for breaking up tough, compressed items.
Specifics
A typical bulldozer utilizes tracks that provide excellent maneuvering options and stellar traction on unstable, uneven or rough ground with a unique transmission that enables the dozer to operate with more tractive force. The track width evenly distributes the weight in unstable applications to prevent the industrial machine from sinking. Tracks are also available in increased widths, known as swamp tracks. Dozers are popular within mining applications, land clearing and construction jobs that need strong and stable equipment to transport materials within a variety of environments.
Bulldozers operating on a wheeled system usually have four wheels, moved along by a 4-wheel-drive system and a hydraulic, articulated steering system. Mounted directly in front of the articulation joint, the bulldozer blade uses a hydraulic system for operating instead of a mechanical setup.

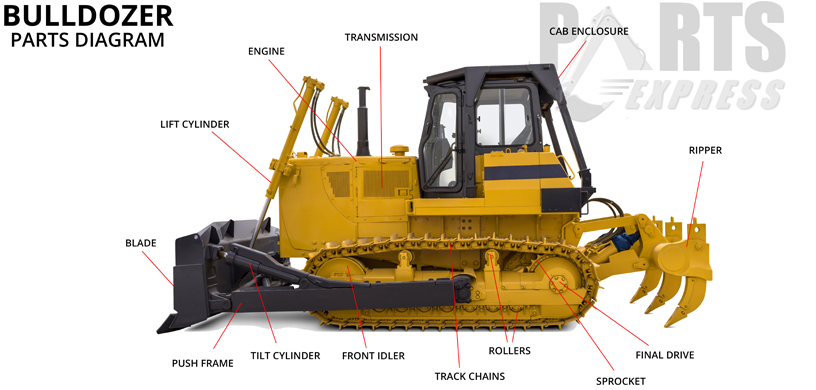

The main tools that distinguish the dozer from other construction machine are the dozer blade and the ripper.
The Dozer Blade
The bulldozer blade consists of a sizeable metal plate that is situated at the front of the machine. Its purpose is to push heavy objects and material. Snow, gravel, sand, dirt and garbage are some of the most popular items that bulldozers push around. Three typical kinds of dozer blade options are available including the semi-U blade, the universal blade and the straight blade.
The universal or U blade features large wings on the sides of the tall, curved blade to transport more material. The straight blade, or S blade, is short, has no lateral curve and no side wings and is also used for fine earth grading. The semi-U blade, or S-U blade, is a combination blade which is shorter, is less curved and has side wings, but which are smaller than those on the U blade. It is generally used for pushing boulders or large rock piles.
Dozer blades commonly attach horizontally or at an angle to the tractor. Dozer blade angles are capable of being adjusted via tilt cylinders. Dozer blades can be sharpened to enable cutting items including tree stumps and roots. An angledozer features a blade that is pushed ahead on one side to enable items to be cleared out of the path of the bulldozer. Angledozers are commonly used for snow removal.
A bull blade is a common bulldozer attachment. A bull blade is a reinforced centre section of the bulldozer. The bull blade enables the dozer to push a scraper to move large portions of earth.
Dozer blades are also used on military vehicles. Many different military vehicles including artillery tractors, combat engineering vehicles and battle tanks utilize dozer blades. Mounting a dozer blade on a battle tank enables it to push mines and obstacles out of the way or create combat positions by digging shelters. It also helps create a protective barrier against artillery and explosives.
The Dozer Ripper
The tool found at the back of the bulldozer with long teeth is the dozer ripper also called the shank. Dozer rippers come in a large, single shank design or with groups of two or more shanks. The giant ripper design or large single shank is commonly used for large and compact applications. The multi-shank designs are referred to simply as multi-shank rippers.
The shank’s tip, called the boot, is a metal, detachable piece. This allows for replacement of the boot when it becomes dull or broken, rather than replacement of the entire shank.
Solid objects including compact earth, concrete or rock can be broken up into tinier pieces thanks to the dozer ripper, creating material that is easier to transport by the dozer. This allows for quicker project completion.
In farming, a dozer ripper is used to break up rock and very dense earth to allow for ploughing and planting. In certain locations in New Zealand and Italy, the dozer ripper helps to access ancient lava flows that are rich in nutrients and normally would not be able to be farmed due to the density of the ground. With use of the ripper, the top layer of lava rock is loosened, allowing for the surface to be farmed.
Bulldozer Adaptations
Adaptations to the bulldozer over the years have enabled it to become useful for numerous applications.
The initial bulldozer design was too big to work in confined locations such as mines. These size limitations lead to smaller unit designs to enable more maneuverability in tighter locations. Smaller, light bulldozer models are commonly called calfdozers.
Snowier locations including ski hills rely on a lighter bulldozer version for snow removal and winter slope preparation.
More common bulldozer adaptations resulted in the loader tractor. The loader tractor consists of replacing the dozer blade with a sizeable bucket and using hydraulic arms for raising and lowering. The new bulldozer is commonly called a Drott, track loader or trackscavator and used for loading dump trucks with earth, gravel and rocks.
A lesser-known bulldozer attachment is called the stump buster. A stump buster is attached at the back of the bulldozer. It consists of a single spike that protrudes horizontally to split tree stumps up for easier removal. Stump busters are commonly used by bulldozers to clear land. In those instances, the bulldozer is often also equipped with a brush-rake blade.
The original bulldozer design is used ground leveling, road carving, deforestation and earthmoving applications. Large bulldozers are mainly used to flatten terrain for construction preparation. The construction is completed mostly by smaller bulldozers and loader tractors.
Origins
The initial bulldozer design was created when a draftsman, J. Earl McLeod teamed up with a farmer named James Cummings in 1923. The dozer blade was the initial design they created and was built to be attached to an existing tractor in order to plow fields. They built the original bulldozer and it can be viewed in Kansas’ city park, Morrowville. Later that year, Cummings and McLeod filed for a US patent on their bulldozer attachment which was granted in January 1925. During this time, tractors commonly ran on a track system. The creation of the armored tank in World War I was largely due in part to this early version of the super maneuverable tractor.
A variety of custom and homemade attachments started to appear in 1929 on tracked and wheeled tractors. The bulldozer attachment did not gain popularity until the middle of the 1930s. Hydraulic cylinders were introduced before 1940 and the term bulldozer referred to the whole machine who’s popularity greatly expanded by the 1950s.
With their growth in popularity for large and small construction jobs, bulldozers became larger and stronger. Eventually, many companies such as John Deere and Caterpillar began to manufactured large tracked and wheeled bulldozers. With time, manual transmission was replaced with automatic transmission and cable winch systems were replaced with hydraulic cylinders and electric motors. These upgrades allowed for more accurate and effective control systems. These days, GPS technology geared toward bulldozing tasks has added to improved grade control.
Bulldozers began as a tractor attachment for farming applications and have grown to become one of the most useful pieces of equipment for construction, civil engineering, building and maintenance applications, mining operations and military use.
